QS91 Solder-Down SoM

The QS9 is a QFN Style Solder-Down Computer On Module. The module with a small square size of 27mm and a height of 2.3mm is single-sided assembled. Its QFN type lead style has a 1mm pitch with 100 pads. The ground pad additionally acts as thermal pad.

Our brands
ka-ro electronics

Our brands

Related articles

Insyde Software and Logic Technology partnership – UEFI firmware and embedded software solutions for industrial and embedded systems.

PRESS RELEASE – Logic Technology Partner Insyde Software Joins Arm Total Design to Accelerate AI Server Development

Logic Technology partner Insyde Software joins the Arm Total Design ecosystem, bringing its proven UEFI and OpenBMC firmware solutions to accelerate AI server infrastructure powered by Arm Neoverse Compute Subsystems....

Read more

PRESS RELEASE – Logic Technology becomes exclusive Benelux distributor for IAR

Read more

Spotlight: The QSMP 23 – Edge AI in a Compact Package

Read more

Introducing the TX93: A Compact, High-Impact Embedded Platform

Read more

Spotlight: The TX91 – Tiny Plug-In Powerhouse

Read more
QS93-NXP

€ 39,-

(starting from excl. VAT)

NXP’s Secure, Energy-Efficient i.MX 91 Family Expands Linux® Capabilities for Thousands of Edge Applications.

The i.MX 91 family delivers an optimized blend of security, features, and energy-efficient performance required for the next generation of Linux-based IoT and industrial applications. The i.MX 91 family enables developers to quickly create new Linux-based edge devices. As the entry point into the i.MX 9 series, the i.MX 91 family provides the extensibility and ease of programming that developers need for applications to evolve over time.

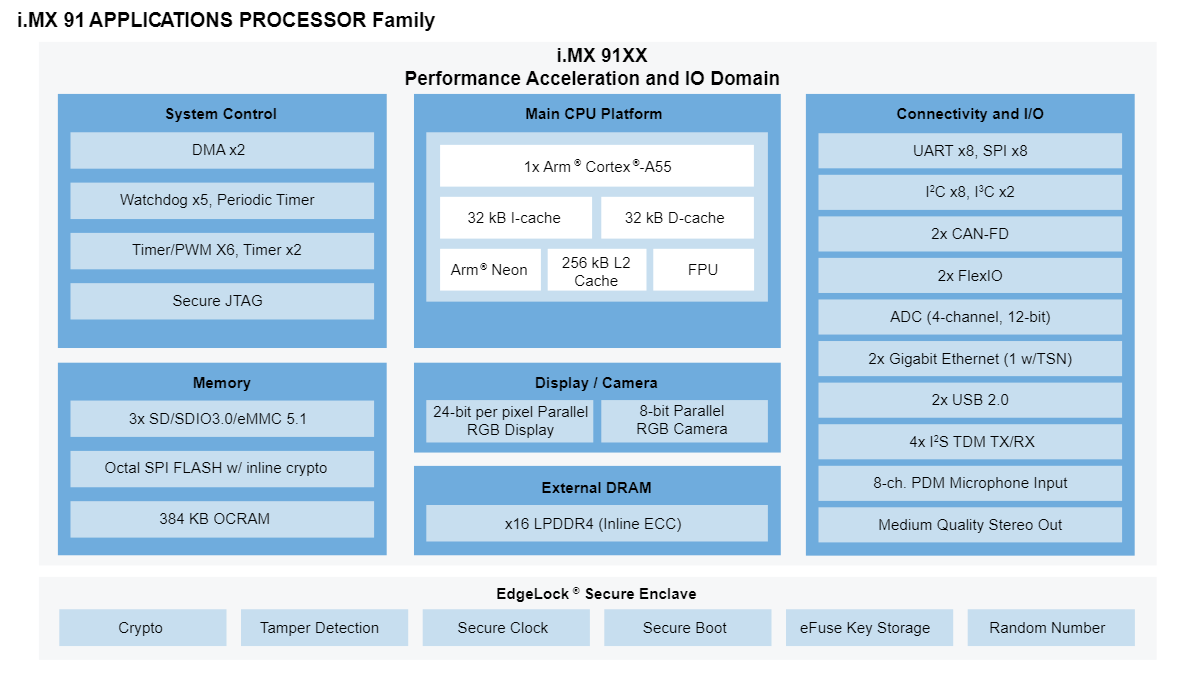

iMX91_Block_Diagram

Variants

Part NumberQS91-3110
Part NameQS91/31C/512S/4GF/I
ProcessorNXP i.MX9131
SDRAM512 MiB
Flash4 GB
Display-IFRGB
Temperature-25 °C to 85 °C

Socketed Version

A Socketed version of the QS91 is available upon request.

Part Number: QS91-3110/SOCK

Specifications:

  • 33mm square
  • 2mm stacking height
  • Two 80 pin connectors
  • Easy to lock with screws
  • Optional shielding cabinet
  • 5.7 mm total height

Pre-programmed

All modules will be shipped with a pre-programmed bootloader by default. To speed up the production process, the modules can also be pre-programmed to customer specifications. JEDEC version 5.0 introduces “Production State Awareness” to help avoid possible data corruption during soldering. Only a predefined part of the whole device’s available space can be supported by this feature.

BSP Support and Services

Our Application Support Team can help you customize the included Linux Board Support Package, ensuring optimal performance, faster time-to-market, and seamless integration with your development environment, hardware and applications.
