QS93 Solder-Down SoM

The QS9 is a QFN Style Solder-Down Computer On Module. The module with a small square size of 27mm and a height of 2.3mm is single-sided assembled. Its QFN type lead style has a 1mm pitch with 100 pads. The ground pad additionally acts as thermal pad.

Our brands
ka-ro electronics

Our brands

Related articles

Insyde Software and Logic Technology partnership – UEFI firmware and embedded software solutions for industrial and embedded systems.

PRESS RELEASE – Logic Technology Partner Insyde Software Joins Arm Total Design to Accelerate AI Server Development

Logic Technology partner Insyde Software joins the Arm Total Design ecosystem, bringing its proven UEFI and OpenBMC firmware solutions to accelerate AI server infrastructure powered by Arm Neoverse Compute Subsystems....

Read more

PRESS RELEASE – Logic Technology becomes exclusive Benelux distributor for IAR

Read more

Spotlight: The QSMP 23 – Edge AI in a Compact Package

Read more

Introducing the TX93: A Compact, High-Impact Embedded Platform

Read more

Spotlight: The TX91 – Tiny Plug-In Powerhouse

Read more

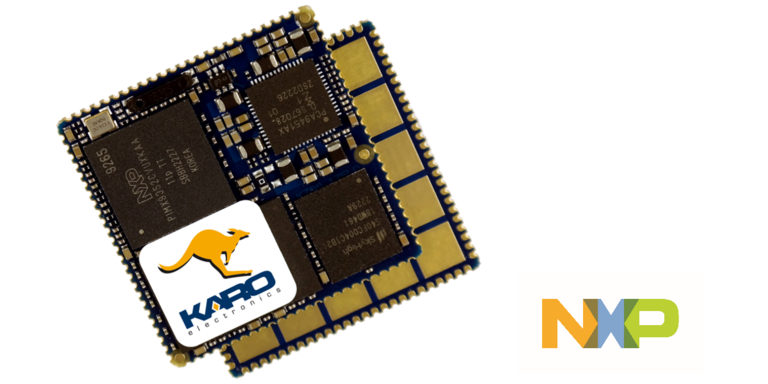

QS93-NXP

€ 60,-

(starting from excl. VAT)

i.MX 93 applications processors deliver efficient machine learning (ML) acceleration, energy flex architecture and state-of-the-art security to support energy-efficient edge computing. i.MX 93 processors offer fast and efficient ML inferencing along with a rich set of peripherals and high-performance application cores for  automotive, industrial and consumer IoT market segments.

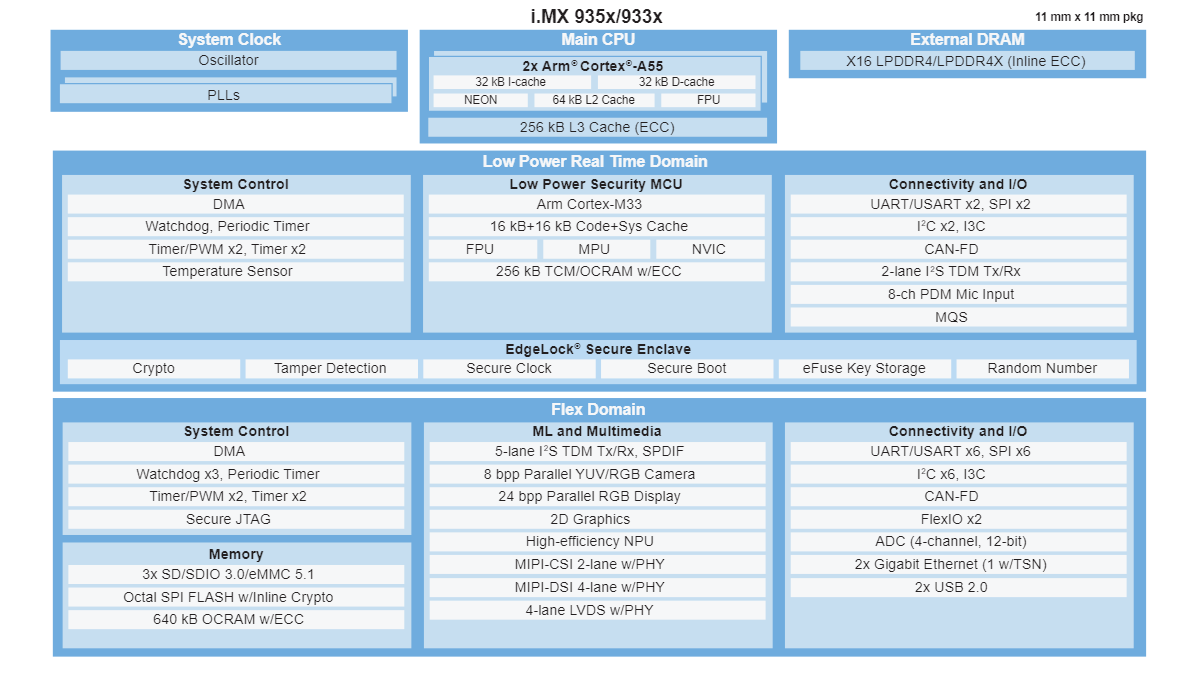

iMX93_Block_Diagram

Variants

Part NumberQS93-5210
Part NameQS93/52C/1GS/4GF/I
ProcessorNXP i.MX9352
SDRAM1 GiB
Flash4 GB
Display-IFLVDS
Temperature-40 °C to 85 °C

Socketed Version

A Socketed version is available upon request.

Part Number: QS93-5210/SOCK

Specifications:

  • 33mm square
  • 2mm stacking height
  • Two 80 pin connectors
  • Easy to lock with screws
  • Optional shielding cabinet
  • 5.7 mm total height

Pre-programmed

All modules will be shipped with a pre-programmed bootloader by default. To speed up the production process, the modules can also be pre-programmed to customer specifications. JEDEC version 5.0 introduces “Production State Awareness” to help avoid possible data corruption during soldering. Only a predefined part of the whole device’s available space can be supported by this feature.

BSP Support and Services

Our Application Support Team can help you customize the included Linux Board Support Package, ensuring optimal performance, faster time-to-market, and seamless integration with your development environment, hardware and applications.

Gilles Hendrikx

Gilles Hendrikx

Build Acceleration | Boards | UI | Development

Questions?

The i.MX 93 applications processors are the first in the i.MX portfolio to integrate the scalable Arm® Cortex®-A55 core, bringing best-in-class performance and energy efficiency to Linux-based edge applications.
