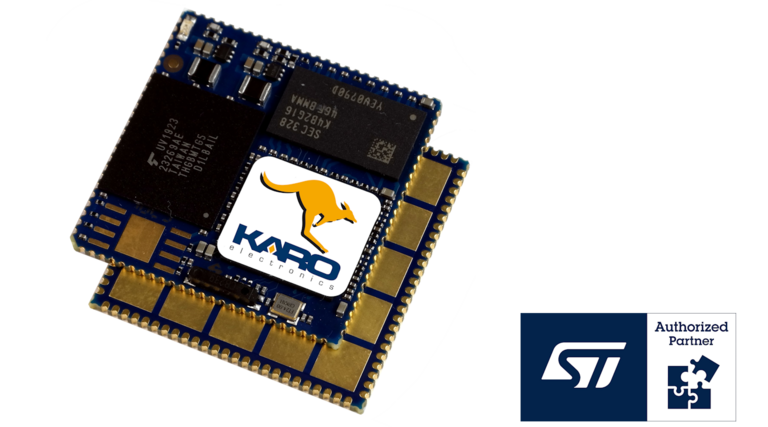

QSMP-13 Solder-Down SoM

The QSMP is a QFN Style Solder-Down Computer On Module. The module with a small square size of 27mm and a height of 2.3mm is single-sided assembled. Its QFN type lead style has a 1mm pitch with 100 pads. The ground pad additionally acts as thermal pad.

Our brands
ka-ro electronics

Our brands

Related articles

Spotlight: The TX91 – Tiny Plug-In Powerhouse

Spotlight: The TX91 – Tiny Plug-In Powerhouse We are pleased to introduce the TX91, the newest addition from our partner Ka Ro Electronics to the TX plug-in Computer-on-Module (COM) family....

Read more

PRESS RELEASE – Logic Technology Becomes Official SEGGER Distributor in the Benelux

Read more

LDRA Joins Renesas Ready Partner Network and R-Car Consortium to Accelerate Safety-Critical Software Development, Verification and Certification

Read more

Insyde Software Enables AMD openSIL Support for Enhanced Client Platform Flexibility

Read more

Why Runtime Observability is Essential for Embedded Systems in Critical Environments

Read more

€ 23,-

(starting from excl. VAT)

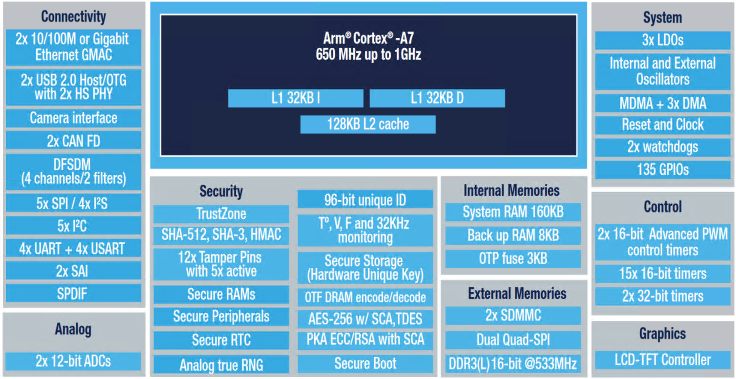

STM32MP135 microprocessors (MPUs) are based on a single Arm® Cortex®-A7 core running up to 1GHz. They feature a dedicated LCD-TFT parallel display interface, a 16-bit parallel camera and dual Ethernet ports.

STM32MP135 MPUs offer cost- & energy-efficient processing with certified security. The STM32MP135 lines bring advanced security features, including:

  • a cryptographic accelerator for hardware robustness,
  • memory protections against illegal access control,
  • code isolation mechanisms for runtime protection,
  • functions to ensure platform authentication during the product lifecycle,
  • and a complete security ecosystem.

The STM32MP13 MPUs are designed for entry-level Linux, bare metal or RTOS systems, with Microsoft Azure RTOS pre-integrated.

Variants

Part NumberQSMP-1351
Part NameQSMP/135C/256S/4GF/E85
ProcessorSTM32MP135C
SDRAM256 MB
Flash4 GB eMMC
Display-IF24-bit RGB
Temperature-25 °C to 85 °C

Socketed Version

A Socketed version of thee QSMP-135 is available upon request.

Specifications:

  • 33mm square
  • 2mm stacking height
  • Two 80 pin connectors
  • Easy to lock with screws
  • Optional shielding cabinet
  • 5.7 mm total height

Pre-programmed

All modules will be shipped with a pre-programmed bootloader by default. To speed up the production process, the modules can also be pre-programmed to customer specifications. JEDEC version 5.0 introduces “Production State Awareness” to help avoid possible data corruption during soldering. Only a predefined part of the whole device’s available space can be supported by this feature.

BSP Support and Services

Our Application Support Team can help you customize the included Linux Board Support Package, ensuring optimal performance, faster time-to-market, and seamless integration with your development environment, hardware and applications.

Gilles Hendrikx

Gilles Hendrikx

Build Acceleration | Boards | UI | Development

Questions?

STM135 help you make your application more power efficient and more secure, in an affordable way. Our KaRo's SoM's aids the development of a cost effective product. Contact me to explore the best matching QS family module for your design.
