QSXM Solder-Down SoM

The QSXM is a QFN Style Solder-Down Computer On Module. The module with a small square size of 29mm and a height of 2.6 mm is single-sided assembled. Its QFN type lead style has a 1mm pitch with 108 pads. The ground pad additionally acts as thermal pad.

Our brands
ka-ro electronics

Our brands

Related articles

Insyde Software and Logic Technology partnership – UEFI firmware and embedded software solutions for industrial and embedded systems.

PRESS RELEASE – Logic Technology Partner Insyde Software Joins Arm Total Design to Accelerate AI Server Development

Logic Technology partner Insyde Software joins the Arm Total Design ecosystem, bringing its proven UEFI and OpenBMC firmware solutions to accelerate AI server infrastructure powered by Arm Neoverse Compute Subsystems....

Read more

PRESS RELEASE – Logic Technology becomes exclusive Benelux distributor for IAR

Read more

Spotlight: The QSMP 23 – Edge AI in a Compact Package

Read more

Introducing the TX93: A Compact, High-Impact Embedded Platform

Read more

Spotlight: The TX91 – Tiny Plug-In Powerhouse

Read more
QSXM

€ 80,-

(starting from excl. VAT)

The i.MX 8M Mini applications processor blends advanced processing capabilities with sophisticated audio, video, and graphics to deliver low-power and high-performing solutions for embedded consumer and industrial applications.

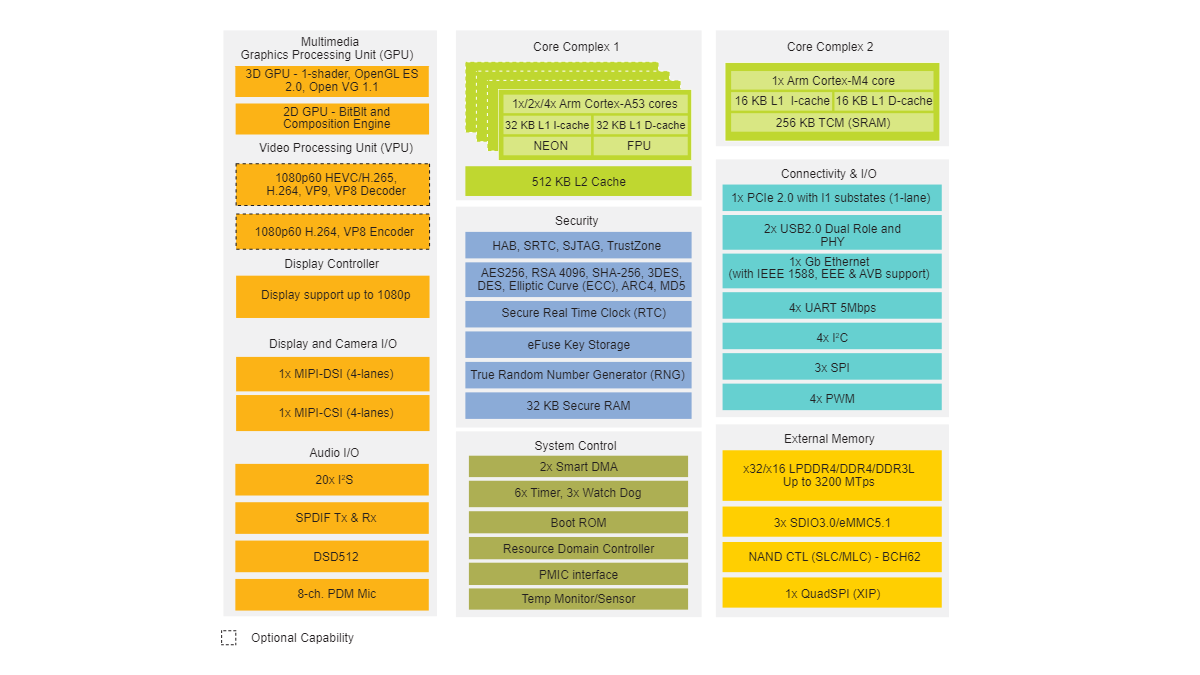

NXP_i.MX8M_mini_Block_Diagram

Variants

Part NumberQSXM-MM60
Part NameQSXM/MM6C/2GS/4GF/E85
ProcessorNXP i.MX8M Mini Quad 1.6 GHz
SDRAM2 GiB
Flash4 GB
Display-IFMIPI
Temperature-25 °C to 85 °C

Socketed Version

A Socketed version of the QS91 is available upon request.

Part Number: QSXM-MM60/SOCK

Specifications:

  • 33mm square
  • 2mm stacking height
  • Two 80 pin connectors
  • Easy to lock with screws
  • Optional shielding cabinet
  • 5.6 mm total height

Pre-programmed

All modules will be shipped with a pre-programmed bootloader by default. To speed up the production process, the modules can also be pre-programmed to customer specifications. JEDEC version 5.0 introduces “Production State Awareness” to help avoid possible data corruption during soldering. Only a predefined part of the whole device’s available space can be supported by this feature.

BSP Support and Services

Our Application Support Team can help you customize the included Linux Board Support Package, ensuring optimal performance, faster time-to-market, and seamless integration with your development environment, hardware and applications.

Gilles Hendrikx

Gilles Hendrikx

Build Acceleration | Boards | UI | Development

Questions?

Hardware and software integration of the newest 64-bit ARM-processor is becoming increasingly more sophisticated. Integrating everything on a single board can create some engineering challenges. To overcome this challenge, a SoM offers much more flexibility as the complex hardware integration and BSP are already done.
