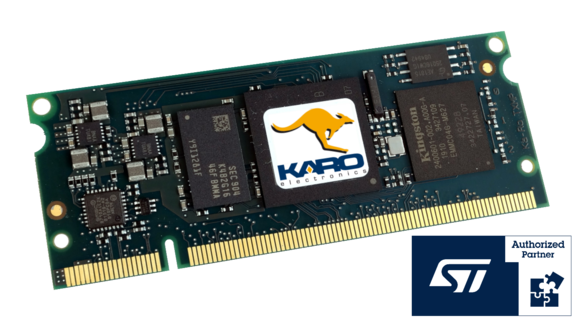

TXMP-ST

€ 46,-

(starting from excl. VAT)

STM32MP1 microprocessor series from single Arm® Cortex®-A7 up to dual Arm® Cortex®-A7 and Cortex®-M4 cores.

A general-purpose microprocessor portfolio enabling easy development for a broad range of applications, the STM32MP1 series has the ability to support multiple and flexible applications, achieving optimal performance and power efficiency at all times.

STM32MP1_block_diagram

Variants

Part NumberTXMP-1570
Part NameTXMP/157C/512S/4GF/E85
ProcessorSTM32MP157C
SDRAM512 MiB
Flash4 GB
Display-IF24-bit RGB + 2-lane MIPI-DSI
Temperature-25 °C to 85 °C

Pre-programmed

All modules will be shipped with a pre-programmed bootloader by default. To speed up the production process, the modules can also be pre-programmed to customer specifications. JEDEC version 5.0 introduces “Production State Awareness” to help avoid possible data corruption during soldering. Only a predefined part of the whole device’s available space can be supported by this feature.

BSP Support and Services

Our Application Support Team can help you customize the included Linux Board Support Package, ensuring optimal performance, faster time-to-market, and seamless integration with your development environment, hardware and applications.

Gilles Hendrikx

Gilles Hendrikx

Build Acceleration | Boards | UI | Development

Questions?

STM32MP1 microprocessor series from single Arm® Cortex®-A7 up to dual Arm® Cortex®-A7 and Cortex®-M4 cores. A general-purpose microprocessor portfolio enabling easy development for a broad range of applications, the STM32MP1 series has the ability to support multiple and flexible applications, achieving optimal performance and power efficiency at all times.
