TXMP2 System on Module

The TXMP2 expands our TX Family of System on Modules with a STM32MP255 processor.

Our brands
ka-ro electronics

Our brands

Related articles

Insyde Software and Logic Technology partnership – UEFI firmware and embedded software solutions for industrial and embedded systems.

PRESS RELEASE – Logic Technology Partner Insyde Software Joins Arm Total Design to Accelerate AI Server Development

Logic Technology partner Insyde Software joins the Arm Total Design ecosystem, bringing its proven UEFI and OpenBMC firmware solutions to accelerate AI server infrastructure powered by Arm Neoverse Compute Subsystems....

Read more

PRESS RELEASE – Logic Technology becomes exclusive Benelux distributor for IAR

Read more

Spotlight: The QSMP 23 – Edge AI in a Compact Package

Read more

Introducing the TX93: A Compact, High-Impact Embedded Platform

Read more

Spotlight: The TX91 – Tiny Plug-In Powerhouse

Read more

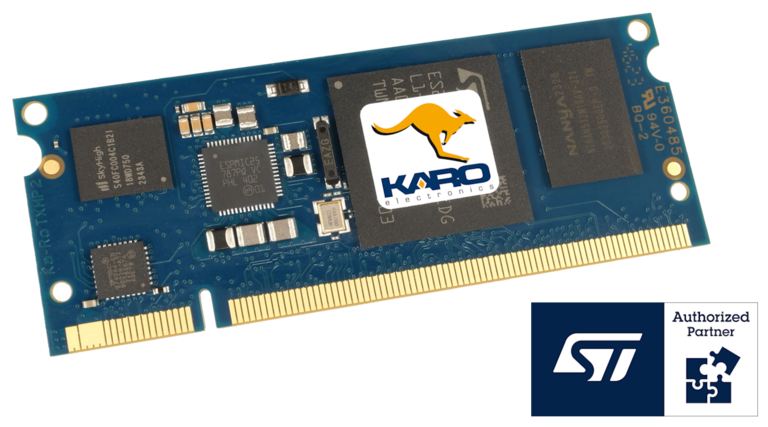

csm_TXMP2-ST

€ 66,-

(starting from excl. VAT)

STM32MP25xC/F devices are based on the high-performance single or dual-core Arm® Cortex®-A35 64-bit RISC core operating at up to 1.5 GHz. The Cortex®‑A35 processor includes a 32-Kbyte L1 instruction cache for each CPU, a 32-Kbyte L1 data cache for each CPU, and a 512-Kbyte L2 cache. The Cortex®‑A35 processor uses a highly efficient 8-stage in-order pipeline that has been extensively optimized to provide full Armv8-A features while maximizing area and power efficiency.

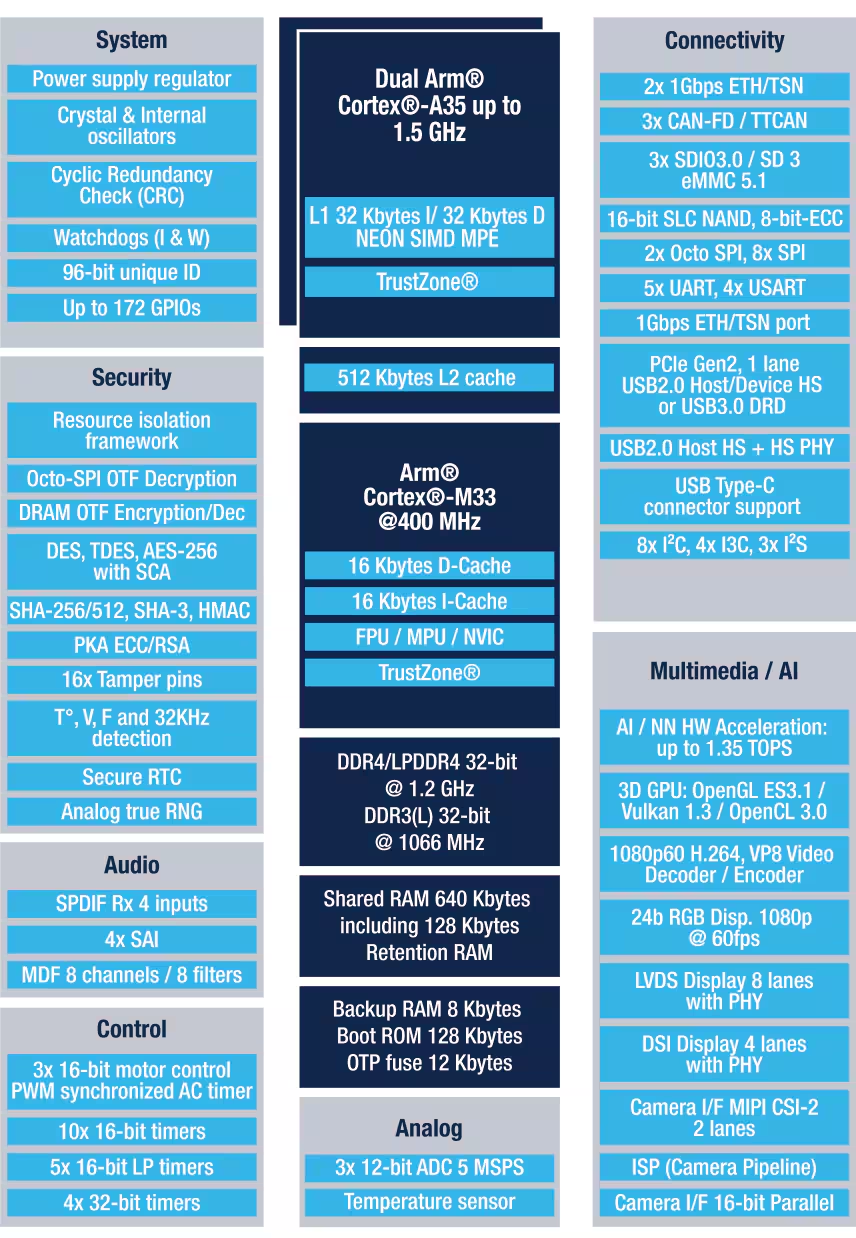

STM23MP255F_Block_Diagram

Variants

Part NumberTXMP-2550
Part NameTXMP2/255F/1GS/4GF/I
ProcessorSTM32MP255F
SDRAM1024 MiB
Flash4 GB
Display-IF24-bit RGB
Temperature-40 °C to 85 °C

Pre-programmed

All modules will be shipped with a pre-programmed bootloader by default. To speed up the production process, the modules can also be pre-programmed to customer specifications. JEDEC version 5.0 introduces “Production State Awareness” to help avoid possible data corruption during soldering. Only a predefined part of the whole device’s available space can be supported by this feature.

BSP Support and Services

Our Application Support Team can help you customize the included Linux Board Support Package, ensuring optimal performance, faster time-to-market, and seamless integration with your development environment, hardware and applications.

Gilles Hendrikx

Gilles Hendrikx

Build Acceleration | Boards | UI | Development

Questions?

STM32MP25xC/F devices also embed a Cortex®-M33 32-bit RISC core operating at up to 400 MHz frequency. The Cortex®-M33 core features a floating point unit (FPU) single precision which supports Arm® single-precision data-processing instructions, and data types. The Cortex®-M33 supports a full set of DSP instructions, TrustZone®, and a memory protection unit (MPU) which enhances application security.
