TX8M System on Module

The TX8M is a member of the TX module series, specially designed for i.MX multimedia processors. TX modules are complete computers, implemented on a board smaller than a credit card, and ready to be designed into your embedded system. With a focus on longevity TX modules includes an i.MX processor, power supply and memory.

Our brands
ka-ro electronics

Our brands

Related articles

Insyde Software and Logic Technology partnership – UEFI firmware and embedded software solutions for industrial and embedded systems.

PRESS RELEASE – Logic Technology Partner Insyde Software Joins Arm Total Design to Accelerate AI Server Development

Logic Technology partner Insyde Software joins the Arm Total Design ecosystem, bringing its proven UEFI and OpenBMC firmware solutions to accelerate AI server infrastructure powered by Arm Neoverse Compute Subsystems....

Read more

PRESS RELEASE – Logic Technology becomes exclusive Benelux distributor for IAR

Read more

Spotlight: The QSMP 23 – Edge AI in a Compact Package

Read more

Introducing the TX93: A Compact, High-Impact Embedded Platform

Read more

Spotlight: The TX91 – Tiny Plug-In Powerhouse

Read more

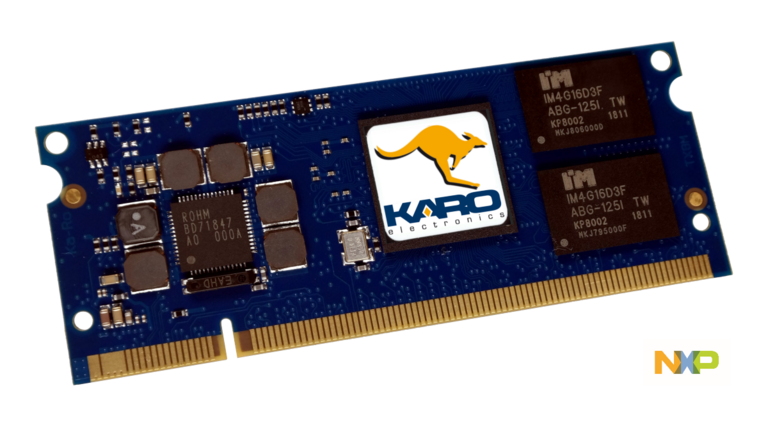

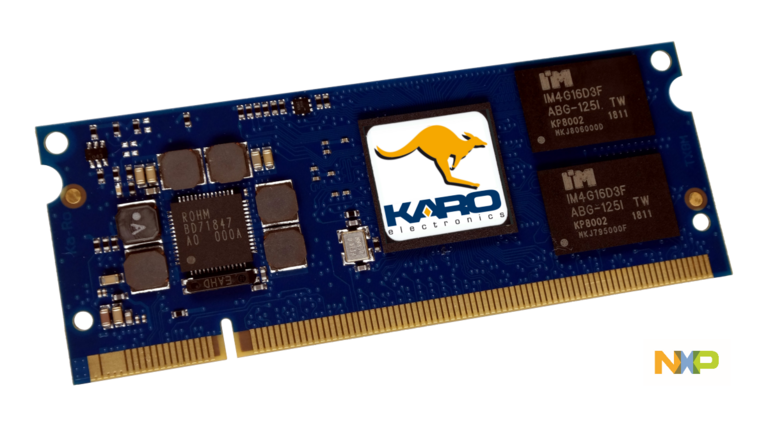

TX8M_NXP

€ 63,-

(starting from excl. VAT)

The i.MX 8M Mini is NXP’s first embedded multicore applications processor built using advanced 14LPC FinFET process technology, providing more speed and improved power efficiency. With commercial and industrial level qualification and backed by NXP’s product longevity program, the i.MX 8M Mini family may be used in any general purpose industrial and IoT application.

i.MX 8 applications processors are part of NXP's EdgeVerse™ edge computing platform.

NXP_i.MX8M_mini_Block_Diagram

Variants

Part NumberTX8M-1610TX8M-1620TX8M-ND00
Part NameTX8MMQ/1600/1024S/4GF/E85TX8MMQ/1600/2048S/4GF/LVDS/E85TX8MND/1400/512S/4GF/E85
ProcessorNXP i.MX 8M Mini QuadNXP i.MX 8M Mini QuadNXP i.MX8M Nano Dual
SDRAM1 GiB2 GiB512 MiB
Flash4 GB4 GB4GB
Display-IFMIPILVDSMIPI
Temperature-25 °C to 85 °C-25 °C to 85 °C-25 °C to 85 °C

Pre-programmed

All modules will be shipped with a pre-programmed bootloader by default. To speed up the production process, the modules can also be pre-programmed to customer specifications. JEDEC version 5.0 introduces “Production State Awareness” to help avoid possible data corruption during soldering. Only a predefined part of the whole device’s available space can be supported by this feature.

BSP Support and Services

Our Application Support Team can help you customize the included Linux Board Support Package, ensuring optimal performance, faster time-to-market, and seamless integration with your development environment, hardware and applications.

Gilles Hendrikx

Gilles Hendrikx

Build Acceleration | Boards | UI | Development

Questions?

EdgeLock® Assurance. This product is part of the EdgeLock Assurance program, designed to meet industry standards and follows NXP's security-by-design approach.
