TX8P System on Module

The TX8P is a member of the TX module series, specially designed for i.MX multimedia processors. TX modules are complete computers, implemented on a board smaller than a credit card, and ready to be designed into your embedded system. With a focus on longevity TX modules includes an i.MX processor, power supply and memory.

Our brands
ka-ro electronics

Our brands

Related articles

Insyde Software and Logic Technology partnership – UEFI firmware and embedded software solutions for industrial and embedded systems.

PRESS RELEASE – Logic Technology Partner Insyde Software Joins Arm Total Design to Accelerate AI Server Development

Logic Technology partner Insyde Software joins the Arm Total Design ecosystem, bringing its proven UEFI and OpenBMC firmware solutions to accelerate AI server infrastructure powered by Arm Neoverse Compute Subsystems....

Read more

PRESS RELEASE – Logic Technology becomes exclusive Benelux distributor for IAR

Read more

Spotlight: The QSMP 23 – Edge AI in a Compact Package

Read more

Introducing the TX93: A Compact, High-Impact Embedded Platform

Read more

Spotlight: The TX91 – Tiny Plug-In Powerhouse

Read more

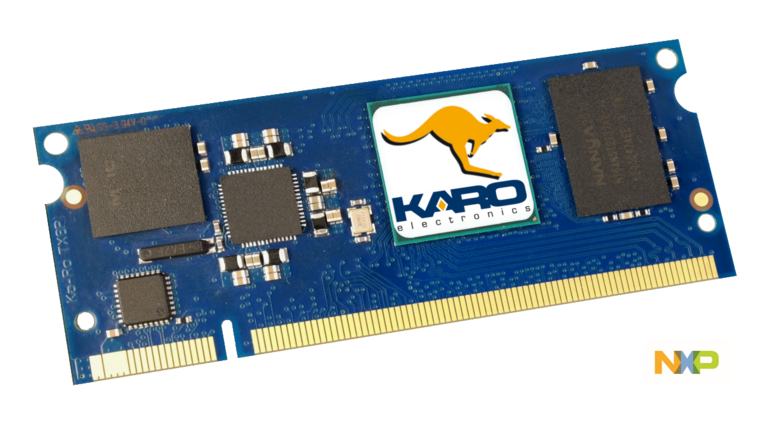

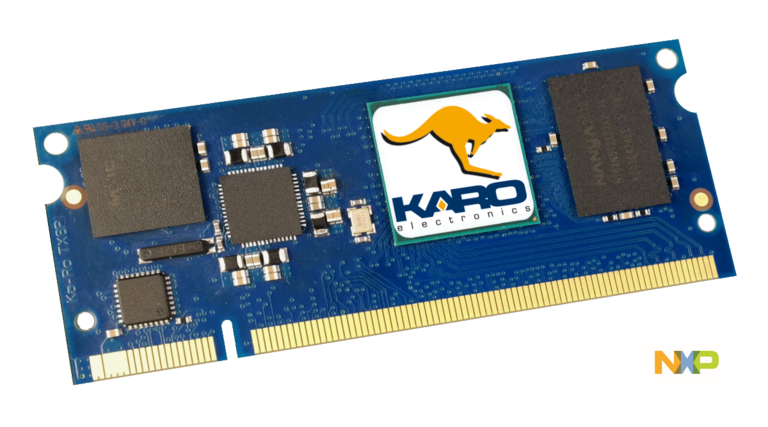

TX8P_NXP

€ 110,-

(starting from excl. VAT)

Edge intelligence, machine learning and vision for a smart world. i.MX 8M Plus applications processors excel in machine learning (ML), vision, advanced multimedia and industrial IoT applications. Elevating edge intelligence, i.MX 8M Plus processors are an excellent foundation for smart homes to smart cities, Industry 4.0 and beyond.

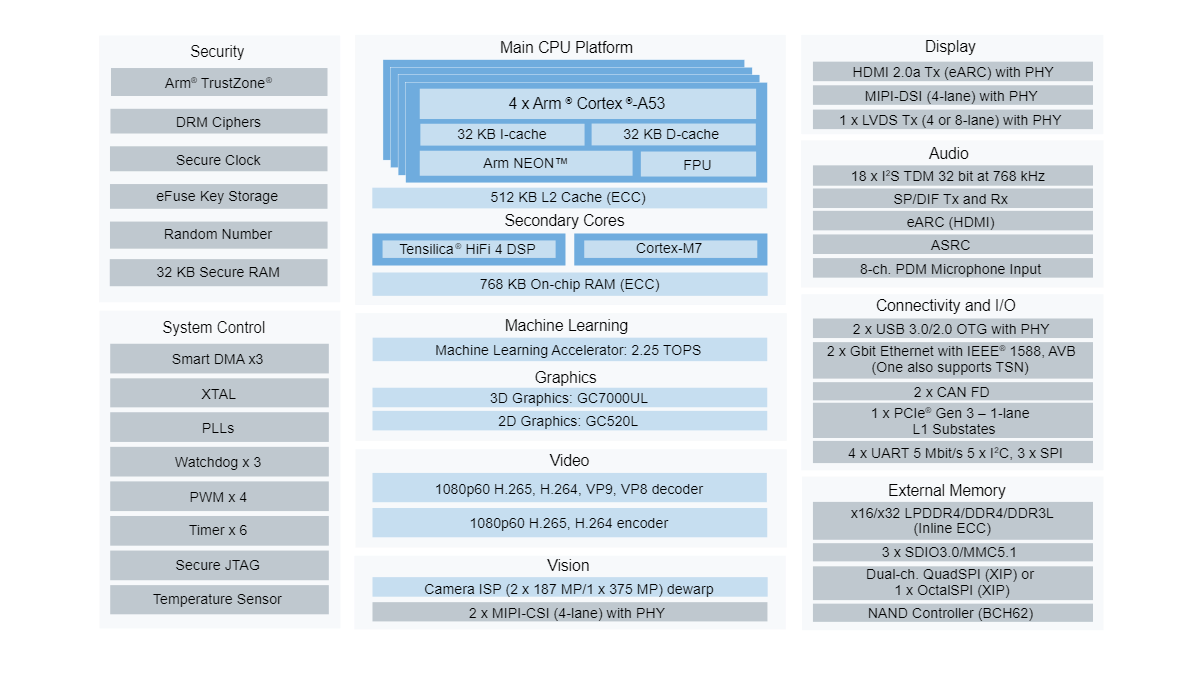

iMX8MPlus_Block_Diagram

Variants

Part NumberTX8P-ML81
Part NameTX8P/ML8C/2GS/8GF/E85
ProcessorNXP i.MX 8M Plus
SDRAM2 GiB
Flash8 GB
Display-IFLVDS / MIPI-DSI / HDMI
Temperature-30 °C to 85 °C

Pre-programmed

All modules will be shipped with a pre-programmed bootloader by default. To speed up the production process, the modules can also be pre-programmed to customer specifications. JEDEC version 5.0 introduces “Production State Awareness” to help avoid possible data corruption during soldering. Only a predefined part of the whole device’s available space can be supported by this feature.

BSP Support and Services

Our Application Support Team can help you customize the included Linux Board Support Package, ensuring optimal performance, faster time-to-market, and seamless integration with your development environment, hardware and applications.

Gilles Hendrikx

Gilles Hendrikx

Build Acceleration | Boards | UI | Development

Questions?

The powerful i.MX 8M Plus applications processor is based on the quad-core Arm® Cortex®-A53 processor. It runs at up to 1.8 GHz with an integrated neural processing unit (NPU) that delivers up to 2.3 TOPS. As the first i.MX processor with a machine learning accelerator, the i.MX 8M Plus processor provides substantially high performance for ML inference at the edge. As the first i.MX processor with a machine learning accelerator, the i.MX 8M Plus processor delivers substantially higher performance for ML inference at the edge.
