TX91 System on Module

The TX91 is a member of the TX Module family. TX modules are complete computers implemented on a board smaller than a credit card, ready to be integrated into your embedded system. Designed for longevity, TX modules include processor, power supply and memory.

Our brands
ka-ro electronics

Our brands

Related articles

Insyde Software and Logic Technology partnership – UEFI firmware and embedded software solutions for industrial and embedded systems.

PRESS RELEASE – Logic Technology Partner Insyde Software Joins Arm Total Design to Accelerate AI Server Development

Logic Technology partner Insyde Software joins the Arm Total Design ecosystem, bringing its proven UEFI and OpenBMC firmware solutions to accelerate AI server infrastructure powered by Arm Neoverse Compute Subsystems....

Read more

PRESS RELEASE – Logic Technology becomes exclusive Benelux distributor for IAR

Read more

Spotlight: The QSMP 23 – Edge AI in a Compact Package

Read more

Introducing the TX93: A Compact, High-Impact Embedded Platform

Read more

Spotlight: The TX91 – Tiny Plug-In Powerhouse

Read more

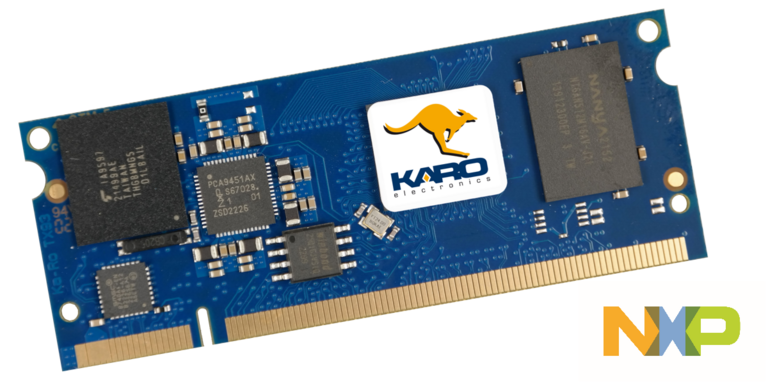

TX93-NXP

€ 41,-

(starting from excl. VAT)

The i.MX 91 family of applications processors enables smart home controllers, home entertainment, connected appliances, industrial automation and medical platforms applications. Powered by an Arm® Cortex-A55, i.MX 91 MPUs integrate a single chip PMIC, PF9453, to enable the rapid creation of Linux-based IoT edge devices. Emerging protocols, such as Matter® for the smart home or the ISO 15118-20 standard for electric vehicle (EV) chargers, create inflection points for new product categories across IoT and industrial markets.

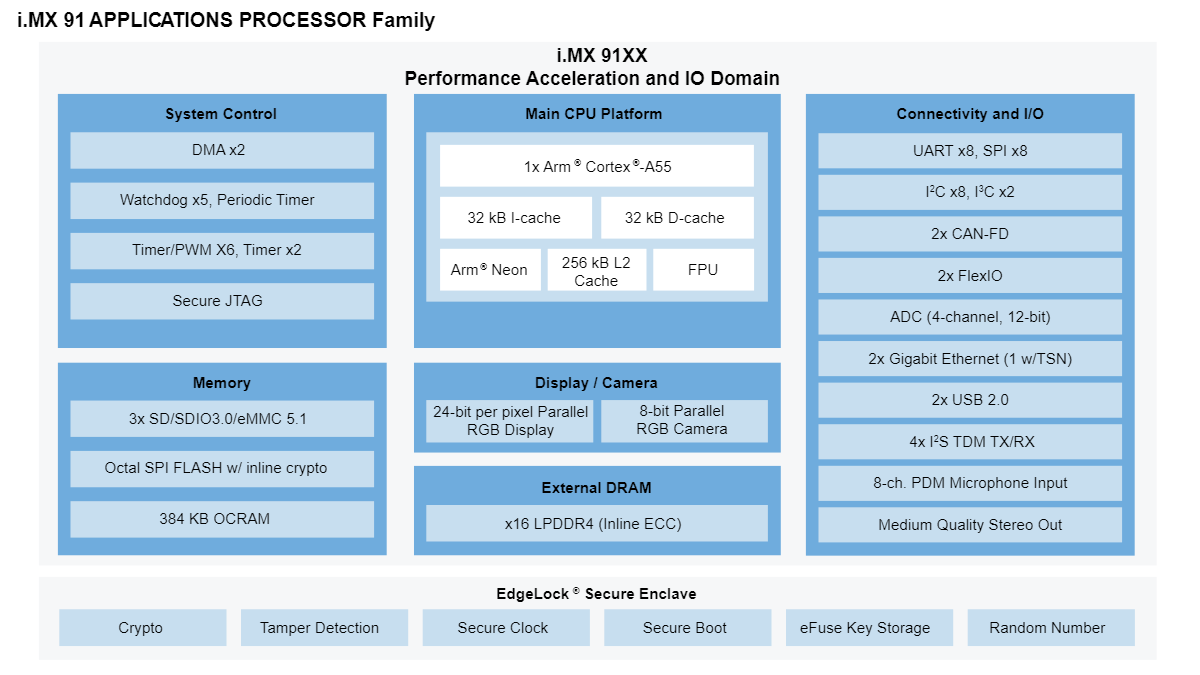

iMX91_Block_Diagram

Variants

Part NumberTX91-3110
Part NameTX91/31C/512S/4GF/E85
ProcessorNXP i.MX9131
SDRAM512 MB
Flash4 GB eMMC
Display-IFRGB
Temperature-25 °C to 85 °C

Pre-programmed

All modules will be shipped with a pre-programmed bootloader by default. To speed up the production process, the modules can also be pre-programmed to customer specifications. JEDEC version 5.0 introduces “Production State Awareness” to help avoid possible data corruption during soldering. Only a predefined part of the whole device’s available space can be supported by this feature.

BSP Support and Services

Our Application Support Team can help you customize the included Linux Board Support Package, ensuring optimal performance, faster time-to-market, and seamless integration with your development environment, hardware and applications.

Gilles Hendrikx

Gilles Hendrikx

Build Acceleration | Boards | UI | Development

Questions?

The TX91 is a member of the TX Module family. TX modules are complete computers implemented on a board smaller than a credit card, ready to be integrated into your embedded system. Designed for longevity, TX modules include processor, power supply and memory.
