TXRZ System on Module

The TXRZ is a member of the TX module series. TX modules are complete computers, implemented on a board smaller than a credit card, and ready to be designed into your embedded system. With a focus on longevity TX modules includes a processor, power supply and memory.

Our brands
ka-ro electronics

Our brands

Related articles

Insyde Software and Logic Technology partnership – UEFI firmware and embedded software solutions for industrial and embedded systems.

PRESS RELEASE – Logic Technology Partner Insyde Software Joins Arm Total Design to Accelerate AI Server Development

Logic Technology partner Insyde Software joins the Arm Total Design ecosystem, bringing its proven UEFI and OpenBMC firmware solutions to accelerate AI server infrastructure powered by Arm Neoverse Compute Subsystems....

Read more

PRESS RELEASE – Logic Technology becomes exclusive Benelux distributor for IAR

Read more

Spotlight: The QSMP 23 – Edge AI in a Compact Package

Read more

Introducing the TX93: A Compact, High-Impact Embedded Platform

Read more

Spotlight: The TX91 – Tiny Plug-In Powerhouse

Read more

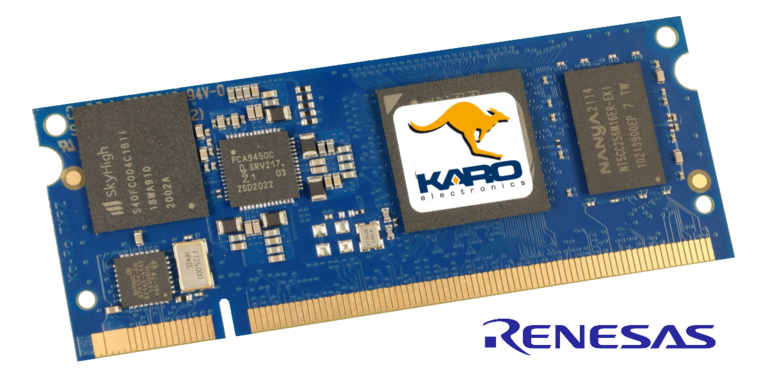

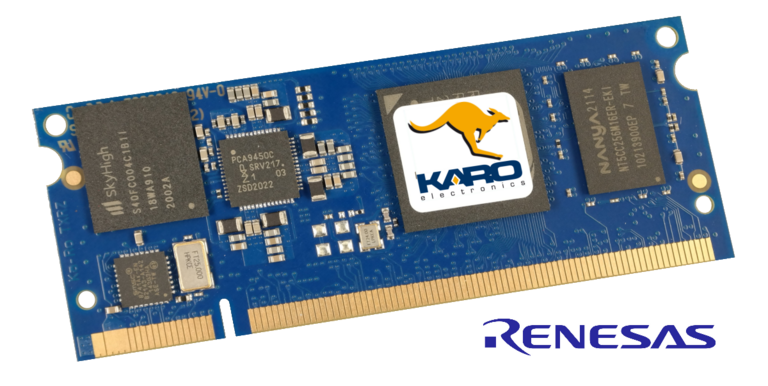

TXRZ_Renesas

€ 56,-

(starting from excl. VAT)

The RZ/G2L microprocessor includes a Cortex®-A55 (1.2GHz) CPU, 16-bit DDR3L/DDR4 interface, 3D graphics engine with Arm® Mali-G31 and video codec (H.264). It also has many interfaces such as camera input, display output, USB 2.0, and Gbit-Ether, making it ideal for applications such as entry-class industrial human-machine interfaces (HMIs) and embedded devices with video capabilities.

The RZ/G2L is also package-compatible and pin-compatible with the RZ/V2L embedded with AI accelerator. This allows RZ/G2L users to easily upgrade to the RZ/V2L for additional AI functions without needing to modify the PCB, keeping migration costs low.

RZ_G2L_Block_Diagram

Variants

Part NumberTXRZ-G2L0TXRZ-G2L1
Part NameTXRZ/G2L/1GS/4GF/ITXRZ/G2L/512S/4GF/I
ProcessorRENESAS RZ/G2LRENESAS RZ/G2L
SDRAM1 GiB512 MiB
Flash4 GB4 GB
Display-IFRGB24, MIPIRGB24, MIPI
Temperature-40 °C to 85 °C-40 °C to 85 °C

Pre-programmed

All modules will be shipped with a pre-programmed bootloader by default. To speed up the production process, the modules can also be pre-programmed to customer specifications. JEDEC version 5.0 introduces “Production State Awareness” to help avoid possible data corruption during soldering. Only a predefined part of the whole device’s available space can be supported by this feature.

BSP Support and Services

Our Application Support Team can help you customize the included Linux Board Support Package, ensuring optimal performance, faster time-to-market, and seamless integration with your development environment, hardware and applications.

Gilles Hendrikx

Gilles Hendrikx

Build Acceleration | Boards | UI | Development

Questions?

As a software platform for this product, Renesas provides the Verified Linux Package, which includes the Linux Kernel, middleware drivers, and basic software for this product. The Verified Linux package is verified and provided by Renesas, available from Logic Technology.
