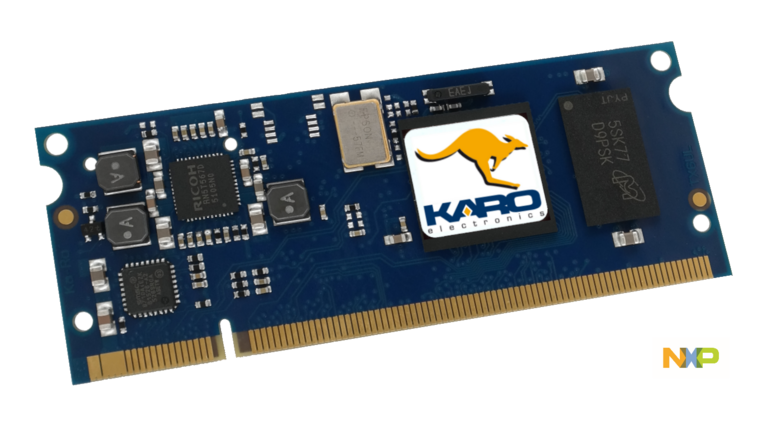

NXP’s energy-efficient processor features a single ARM Cortex-A7 core delivering speeds of up to 792 MHz with low-power operation and industrial temperature ranges. The TXUL Series integrates 256 or 512MB DDR3 RAM and 128MB NAND Falsh or 4GB eMMC. On the latest low-cost module the connectivity options have been extended to include a camera interface and 8 UARTs.

• The single ARM Cortex-A7 core can provide a more cost-effective and more power efficient solution
• Processor delivers hardware-enabled security features that enable secure e-commerce, digital rights management (DRM), information encryption, On-The-Fly DRAM encryption, secure boot and secure software downloads
• Processor supports connections to a variety of interfaces: two high-speed USB on-the-go with PHY, multiple expansion card ports (high-speed MMC/SDIO host and other), two 12-bit ADC modules with up to 10 total input channels, two CAN ports and a variety of other popular interfaces (such as UART, I2C, and I2S serial audio)
• By combining the power-efficient processing capabilities of the ARM Cortex-A9 architecture with bleedingedge 3D and 2D graphics, as well as high-definition video, the i.MX 6 provides a new level of multimedia performance to enable an unbounded next-generation user experience.
