To Observe > To Debug

Read more

SEGGER's J-Trace PRO can capture complete traces over long periods — thereby enabling the recording of infrequent, hard-to-reproduce bugs. This is particularly helpful when the program flow ‘runs off the rails’ and stops in a fault state.

It also supports extended trace features, such as Live Code Coverage (so engineers have visibility over which parts of the application code have been executed) and Live Code Profiling (providing visibility as to which instructions have been executed and how often, so hotspots can be addressed and optimization opportunities identified).

The J-Trace PRO Cortex-A/R/M provides support for Cortex-A/R/M-based microcontrollers. The SuperSpeed USB 3.0 interface of J-Trace PRO enables continuous streaming trace via USB with the full trace clock. Streaming in real time allows for data capture over long periods of time because there is no limit set on the amount of trace data. This gives you all the insight you need to develop and optimize your code.

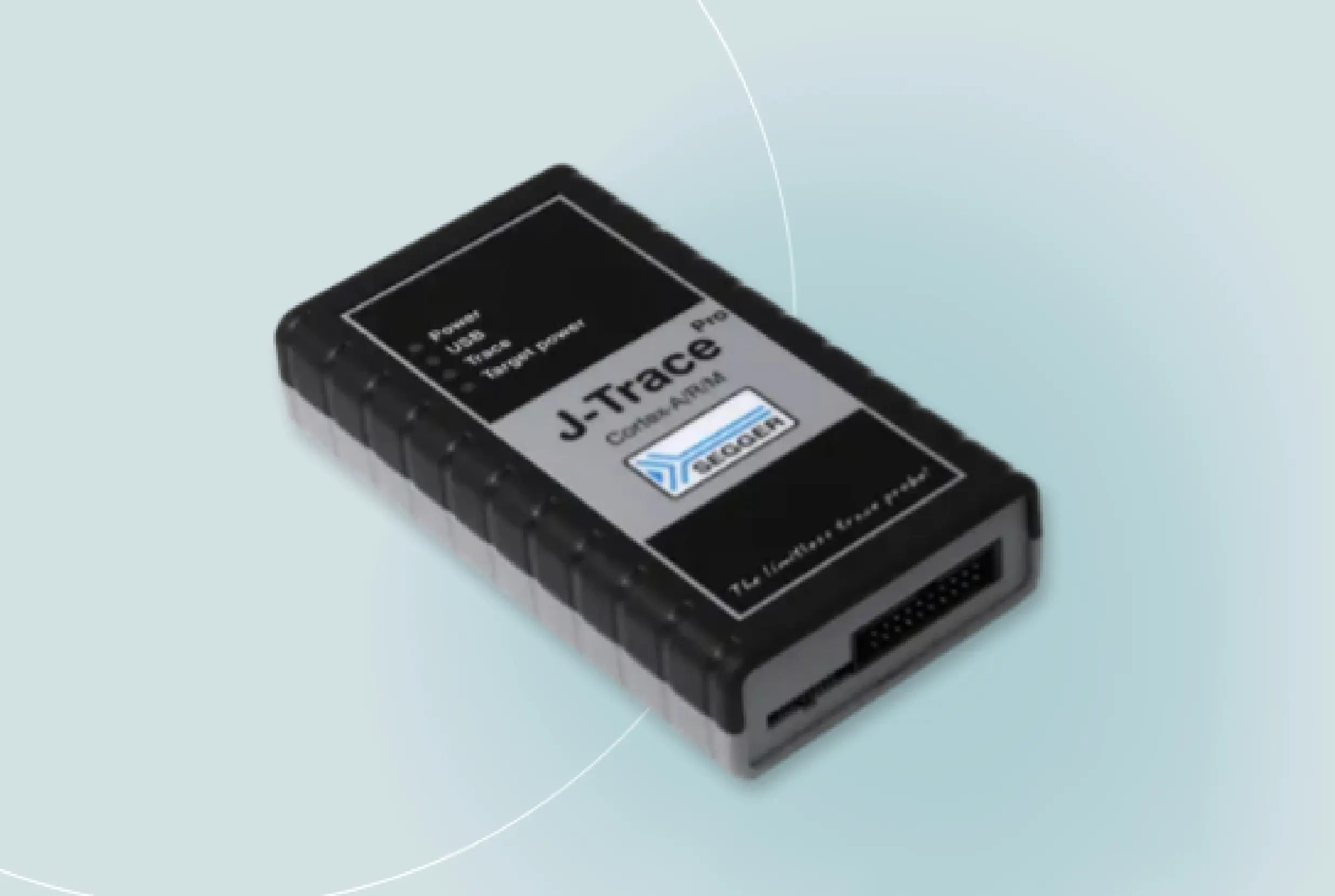

SEGGER J-Trace Pro

Key features

  • Streaming trace probe with SuperSpeed USB3.0 interface and Gigabit Ethernet
  • Download speed up to 4 MB/s
  • Unlimited breakpoints in flash memory (Flash Breakpoints)
  • Use with Ozone and J-Flash
  • Real-time streaming at full System Clock
  • Fine-tune applications with Live Code Profiling
  • Instruction-level code coverage to satisfy regulatory requirements
  • Unlimited trace to isolate & identify hidden code defects
  • Supports Cortex-A/R/M targets
  • Full J-Link debug functionality

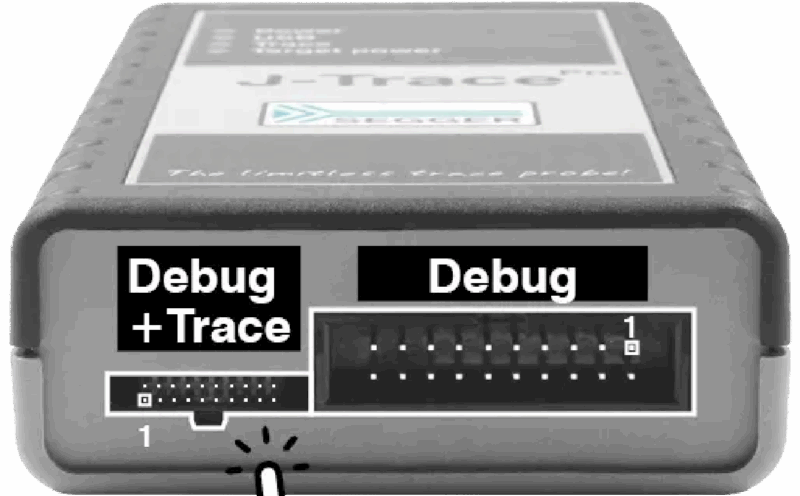

Front view of the SEGGER J-Trace PRO showing Debug + Trace and Debug connectors for JTAG/SWD and trace interfaces

J-Trace has two connectors. The pinout of the debug and trace connector is in the SEGGER knowledge base. The debug connector is for debug only and can be used with target adapters for J-Link. Please note that only one connector can be used at a time.

Software

All software is included free of charge.
