XJAnalyser

XJAnalyser is a powerful tool for real-time circuit visualisation and debugging. It provides a graphical view of JTAG chains, giving you complete control, on a pin-by-pin basis, of both pin state (either driven as an output or tristated as an input) and pin value (either high or low when driven), and it has the facility to run SVF and STAPL / JAM files.

Download the XJAnalyzer datasheet

Related articles

Y-Circ-M-FA-PP-Socket

Tight is Right: The M12 Push-Pull Connector Y-Circ M

Switch safely between Push-Pull and screw locking without compromising on tightness: the M12 Push-Pull with internal locking from Yamaichi relies on a double, independent sealing system for maximum reliability. The...

Read more

Boundary Scan Gets a Boost

Read more

The Landrovers

Read more

Yamaichi’s 0.35mm Ultra Fine Pitch Test Contactor for Semiconductor Evaluation, HAST, HTOL and Failure Analysis

Read more

Key benefits

  • Allows you to increase yields — by setting pin values and tracing signals, debugging your boards becomes easy, even under BGAs.
  • You can reduce time to market by shortening the window from prototype to manufacture.
  • Save your budget by removing the need to have multiple download tools for programming devices.

Features

  • Able to test BGAs and fine-pitch devices
  • Only BSDL files required to get the board up and running
  • Set up pin states – e.g. low, high, toggling
  • Trace shorts, opens and other signals
  • Easy low-level access to device pins/busses

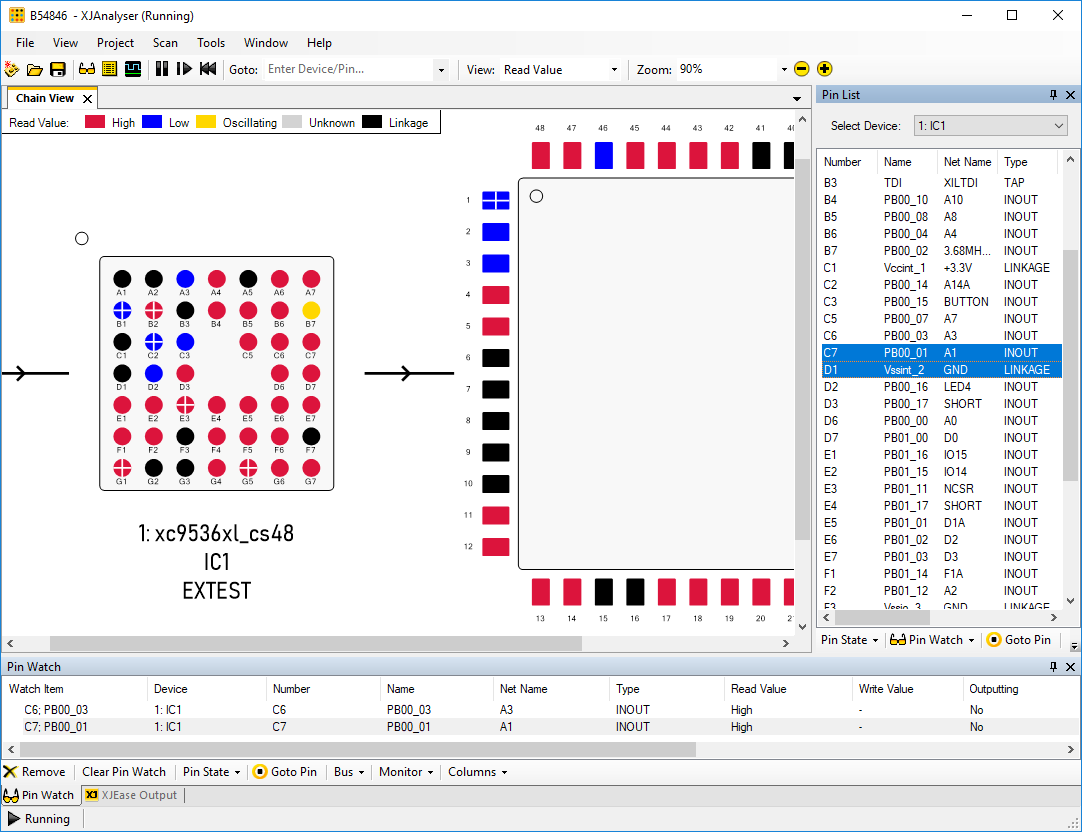

  • Clear display of the pins/balls with variable zoom levels and split screen
  • Quickly find and monitor changing pins
  • Program devices with SVF and STAPL files
  • Plug and play
  • Real-time interaction
