Home » Tools » TX SODIMM-Module family

SODIMM-Module for Maximum flexibility and scalbility

Our brands
ka-ro electronics

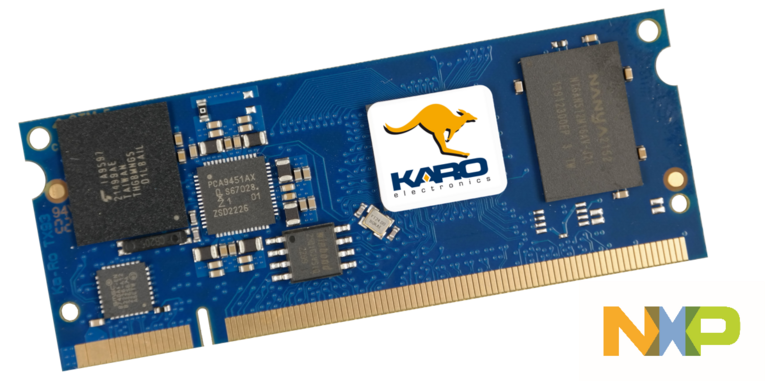

TX modules are complete computers implemented on a board smaller than a credit card, ready to be integrated into your embedded system. Designed for longevity, TX modules include processor, power supply and memory.

Our brands

Increase Flexibility

Scalability

Often, devices are required in different performance and price classes. This is where the TX standard comes into its own. With one single hardware design, embedded engineers can produce a range of pin- and software- compatible products. With one single development kit, all TX modules are supported, demonstrating CoM scalability.

Reduce to the Max

The philosophy behind the TX CoM familiy is to reduce a CoM down to the absolute minimum of components. In doing so, application designers and hardware engineers using the CoMs can achieve maximum flexibility. TX CoM modules solely feature the processor plus memory and power supply. Any additional functions and peripherals can be added to the base board.

Longevity

This focus of CoMs with minimum number of components is on the one hand key to the very competitive pricing and on the other hand it enables us to ensure long-term availability. While processor manufacturers mostly offer a long-term availability of 10 to 15 years, this must also apply to any other component integrated into the module, or these must be available through a second source and without any software alterations. The more components integrated into the module, as is the case with with many other manufacturers, this long-term availability with unaltered functionality is at risk, or simple cannot be guaranteed.

Related articles

We are excited to introduce the QSMP 23, Ka Ro Electronics’ latest low cost, high performance Computer on Module (COM).

Spotlight: The QSMP 23 – Edge AI in a Compact Package

We are excited to introduce the QSMP 23 Edge AI, Ka Ro Electronics’ latest low cost, high performance Computer on Module (COM), now available in the compact QSMP family. At its core...

Read more

Introducing the TX93: A Compact, High-Impact Embedded Platform

Read more

Spotlight: The TX91 – Tiny Plug-In Powerhouse

Read more

PRESS RELEASE – Logic Technology Appointed European Distributor for Lattix by CodeClinic

Read more

Boundary Scan Gets a Boost

Read more

TX SODIMM family

Quick Selection Guide

Part #Part nameCPUMPU#MHzMCUMHzRAMROMGPUVPUNPUTempStarting Price
TXMP-1571TXMP/157C/512S/4GF/E85/SDOKSTM32MP157A72650M4209512MB4GB----25°C..85°C€ 46
TXMP-2550TXMP2/255C/1GS/4GF/ISTM32MP255A3521200M334001GB4GBYY1.35 TOPS-40°C..85°C€ 66
TX91-3110TX91/31C/512S/4GF/E85i.MX 91A5511400--512MB4GB----25°C..85°C€ 41
TX93-5210 TX93/52C/1GS/4GF/E85i.MX 93A5521500M332501GB4GB--0.5 TOPS-25°C..85°C€ 68
TX8M-1610TX8MMQ/1600/1GS/4GF/E85i.MX 8M MiniA5341600M77501GB4GBYY--25°C..85°C€ 80
TX8M-1620TX8MMQ/1600/2GS/4GF/LVDS/E85i.MX 8M MiniA5341600M77502GB4GBYY--25°C..85°C€ 99
TX8M-ND00TX8MND/1400/512S/4GF/E85i.MX 8M NanoA5321400M7750512MB4GBY---25°C..85°C€ 63
TX8P-ML81TX8P/ML8C/2GS/8GF/E85i.MX 8M PlusA5341600M78002GB8GBYY2.30 TOPS-25°C..85°C€ 110
TXUL-5010TX6UL/528/256S/128F/Ii.MX 6 Ultra LiteA71528--256MB128MB----40°C..85°C€ 38
TXUL-5011TX6UL/528/256S/4GF/E85i.MX 6 Ultra LiteA71528--256MB4GB----25°C..85°C€ 42
TXRZ-G2L0TXRZ/G2L/1GS/4GF/IRZ/G2LA5521200M332001GB4GBYY--40°C..85°C€ 68
TXRZ-G2L1TXRZ/G2L/512S/4GF/IRZ/G2LA5521200M33200512MB4GBYY--40°C..85°C€ 56
