emWeb

emWeb allows you to use the most widely accepted language for providing Graphical User Interfaces in the world, HTML. The web server allows you to provide an operating system independent user interface (UI). The UI can be designed in a range from very basic/simple up to full replacements for traditional application GUIs, using technologies like JavaScript, AJAX, SSE, WebSockets and more. This way the target can be operated from any device that features a browser.

Our brands

Our brands

Related articles

Lattix harnesses hierarchical Dependency Structure Matrices (DSM) to visualize and manage complex systems—far beyond the capabilities of traditional box-and-arrow diagrams.

PRESS RELEASE – Logic Technology Appointed European Distributor for Lattix by CodeClinic

North Reading, MA United States & Beek (L), The Netherlands — July 29, 2025 CodeClinic LLC, a global provider of software quality and security solutions, is proud to announce the...

Read more

PRESS RELEASE – Logic Technology Becomes Official SEGGER Distributor in the Benelux

Read more

LDRA Joins Renesas Ready Partner Network and R-Car Consortium to Accelerate Safety-Critical Software Development, Verification and Certification

Read more

Use Case: Collaboration Between Bambi Medical and Logic Technology

Read more

Why Runtime Observability is Essential for Embedded Systems in Critical Environments

Read more

emWeb can not only be incorporated into embedded targets, but PC/Mac or even mobile applications as well.

Even targets that do not feature traditional network access via Ethernet cable or WiFi access can benefit by using a browser UI. With the IP-over-USB technology, SEGGER provides a state-of-the-art solution for USB devices to be powered by a browser UI.

Design only one UI that will work on any end user device.

For your product, using a browser based UI comes with a lot of advantages over a traditional application GUI. The biggest advantage, of course, is that you can operate the target from any host that features a browser, independent of the operating system. While this is a clear advantage to the programmer and designer of an UI, there are even more advantages for your customers, making your device more user friendly than ever before:

  • No software to download or install
  • Can be accessed and configured using any device with a browser (PC/Mac or mobile devices like smartphones or tablets)
  • Can even be made available over the Internet

Key features

  • Provide easy to use graphical interfaces for control or data acquisition
  • Compatible with all browsers for PC/Mac and mobile devices
  • Supports modern standards like WebSockets (additional add-on), REST, SSE and many more
  • Independent of the TCP/IP stack: Any stack with sockets can be used
  • Can be used on embedded targets or PC (Windows/Linux/...) and Mac
  • Samples for embedded targets and PC included, showing simple and advanced use cases
  • High performance
  • Small footprint
  • Smallest configuration can run in a single task for multiple connections

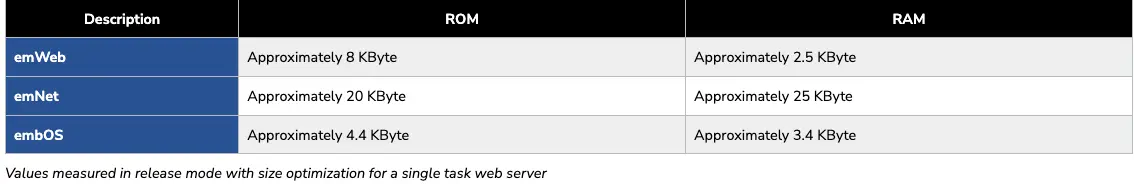

Requirements

TCP/IP stack: emWeb requires a TCP/IP stack. It is optimized for emNet, but any RFC-compliant TCP/IP stack can be used. The shipment includes a Win32 implementation sample which uses the standard Winsock API, as well as an implementation which uses the socket API of emNet.

Multi Tasking: The web server needs to run as a separate thread. Therefore, a multi tasking system is required to use the web server emWeb.

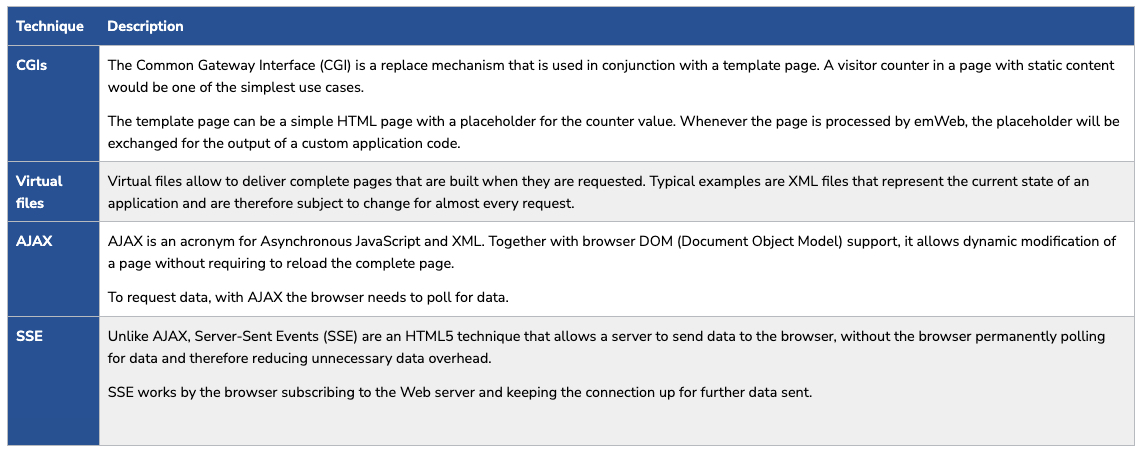

Dynamic Content

emWeb supports different techniques to create dynamic pages.

emWeb supports different techniques to create dynamic pages.

Authentication

emWeb supports the following authentication mechanisms.

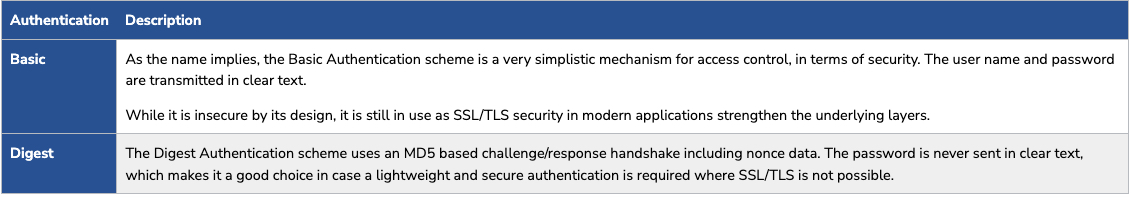

Table comparing Basic and Digest authentication mechanisms supported by emWeb, highlighting their security differences and usage scenarios

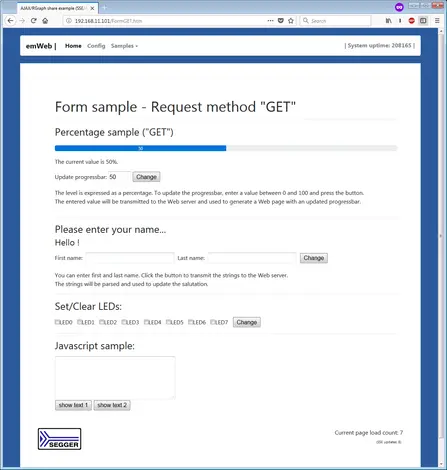

Form handling

emWeb supports both, POST and GET methods to receive form data from a client. An easy to use application API allows to retrieve and process form data in a simple and memory efficient way.
